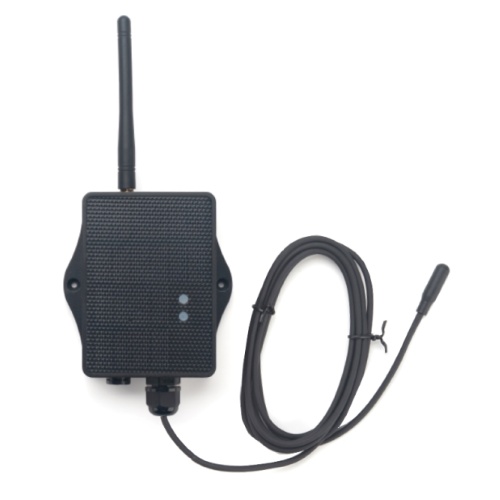

D20S-LS -- LoRaWAN Waterproof /Outdoor Temperature Sensor

The Dragino D20S-LS is a LoRaWAN Temperature Sensor for Internet of Things solution. D20S-LS will convert the Temperature reading to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

The LoRa wireless technology used in D20S-LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

The temperature sensor used in D20S-LS can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).

D20S-LS supports temperature alarm feature, user can set temperature alarm for instant notice. D20S-LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.

D20S-LS supports BLE configure and wireless OTA update which make user easy to use.

D20S-LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use up to 5 years.

Each D20S-LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• 1 x DS18B20 Temperature sensor, 2 meters
• Measure range -55°C ~ 125°C
• Temperature alarm
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• IP66 Waterproof Enclosur
• Solar panel + 3000mAh Li-ion battery

Specifications:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Temperature Sensor:

• Dallas DS18B20
• Range: -55 to + 125°C
• Accuracy ±0.5°C (max ±2.0 °C).

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Documents:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• 1 x D20S-LS  LoRaWAN Waterproof /Outdoor Temperature Sensor

Dimension and weight:

• Device Size: 120 * 55 * 200 mm
• Device Weight: 372g

Part Number: D20S-LS-XX(designed for used in Soil or Road)

XX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915
• KZ865: Default frequency band KZ865

• Availability: 50 In Stock
