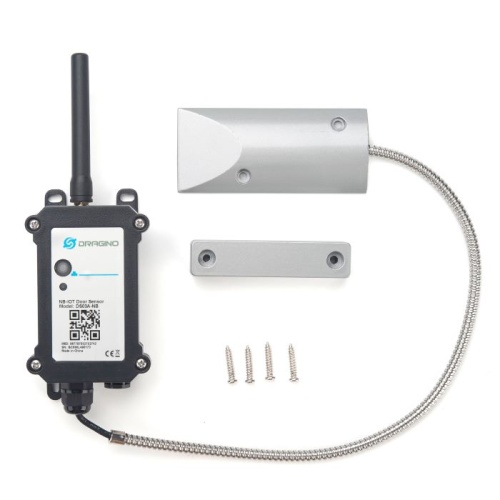

DS03A-NB -- NB-IoT Open/Close Door Sensor

The Dragino DS03A-NB is a  NB-IoT Door Sensor for Internet of Things solution. It detects door open/close status and uplinks to IoT server via NB-IoT network. user can see the door status, open duration, open counts in the IoT Server.

The DS03A-NB will send periodically data every 2 hours as well as for each door open/close action. It also counts the door open times and calculates the last door open duration. Users can also disable the uplink for each open/close event, instead, DS03A-NB can count each open event and uplink periodically.

DS03A-NB supports Datalog Feature,it can save the data when there is no NB-IoT network and uplink when network recover.

DS03A-NB has the Open Alarm Feature, user can set this feature so the device will send an alarm if the door has been open for a certain time.

DS03A-NB is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures

DS03A-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers.

DS03A-NB supports BLE configure and OTA update which make user easy to use.

DS03A-NB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

DS03A-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.

Features:

• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
• Ultra-low power consumption
• Door Open/Close detect
• Door open/close statistics
• Datalog Feature
• Open Alarm Feature
• Probe length: 40cm
• Multiply Sampling and one uplink
• Support Bluetooth v5.1 remote configure and update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Battery for long term use
• Nano SIM card slot for NB-IoT SIM

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Industrial Monitoring and Control

Specification:

Common DC Characteristics:

• Supply Voltage: built in 8500mAh Li-SOCI2 battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

NB-IoT Spec:

NB-IoT Module: BC660K-GL

Support Bands:

• B1 @H-FDD: 2100MHz
• B2 @H-FDD: 1900MHz
• B3 @H-FDD: 1800MHz
• B4 @H-FDD: 2100MHz
• B5 @H-FDD: 860MHz
• B8 @H-FDD: 900MHz
• B12 @H-FDD: 720MHz
• B13 @H-FDD: 740MHz
• B17 @H-FDD: 730MHz
• B18 @H-FDD: 870MHz
• B19 @H-FDD: 870MHz
• B20 @H-FDD: 790MHz
• B25 @H-FDD: 1900MHz
• B28 @H-FDD: 750MHz
• B66 @H-FDD: 2000MHz
• B70 @H-FDD: 2000MHz
• B85 @H-FDD: 700MHz

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• STOP Mode: 10uA @ 3.3v
• Max transmit power:    350mA@3.3v

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• DS03A-NB NB-IoT Door sensor x 1
• External antenna x 1

Dimensions and Weight:

• Size:  mm
• Weight:  g

Model: DS03A-NB-XX:

XX:

• GE: General version ( Exclude SIM card)

• 1T: with 1NCE * 10 years 500MB SIM card and Pre-configure to ThingsEye server

• Availability: 19 In Stock
• Model: DS03A-NB
