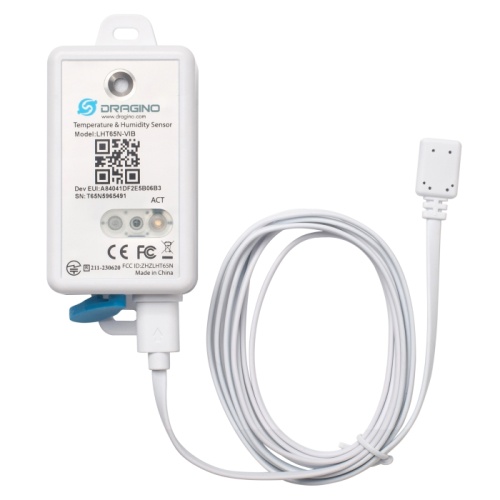

LHT65N-VIB -- LoRaWAN Vibration Sensor

The Dragino LHT65N-VIB LoRaWAN Vibration Sensor is designed to detect and measure vibrations, shocks, or accelerations of an object. By analyze the motion of the object, LHT65N-VIB can send meaningful resulte such as: Alarm, device runtime, counting, vibration strenght to IoT platform for further analyze.

It targets professional wireless sensor network applications such as monitoring equipment status, water leakage alarm, usage statistics, vibration intensity detection, etc.

The LHT65N-VIB allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LHT65N-VIB has a built-in 2400mAh non-chargeable battery which can be used for more than 3 years*.

LHT65N-VIB is fully compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

*The actual battery life depends on how often to send data, please see battery analyzer chapter.

Features:

• LoRaWAN v1.0.3 Class A protocol
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• Detecting object vibration status
• Detect vibration alarm
• 3-axis accelerator for x,y,z
• Calcula device runtime
• Built-in Temperature & Humidity sensor
• Built-in 2400mAh battery for long time use
• Firmware upgradable via program port
• Remote confgure parameters via LoRaWAN Downlink
• AT Commands to change parameters

Applications:

• Water Leak Detect
• Machine Monitoring
• Wash Basin Usage Counting
• Pump Monitoring

Specifications:

Built-in Temperature Sensor:

• Resolution: 0.01 °C
• Accuracy Tolerance : Typ ±0.3 °C
• Long Term Drift: < 0.02 °C/yr
• Operating Range: -40 ~ 85 °C

Built-in Humidity Sensor:

• Resolution: 0.04 %RH
• Accuracy Tolerance : Typ ±3 %RH
• Long Term Drift: < 0.25 RH/yr
• Operating Range: 0 ~ 96 %RH

External Vibration Sensor:

• Detecting object vibration status
• accelerator for x,y,z

• Small size for easy installation

Documents:

• DataSheet, Document Base,Certificate
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• 1 x LHT65N-VIB LoRaWAN Vibration Sensor

Dimension and weight:

• Device Size:  cm
• Weight: g

• Package Size:  cm
• Weight: g

Part Number: LHT65N-VIB-XXX

XXX: The default frequency band

• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU433: LoRaWAN EU433 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865:  LoRaWAN IN865 band
• CN470: LoRaWAN CN470 band

• Availability: 25 In Stock
• Model: LHT65N-VIB
