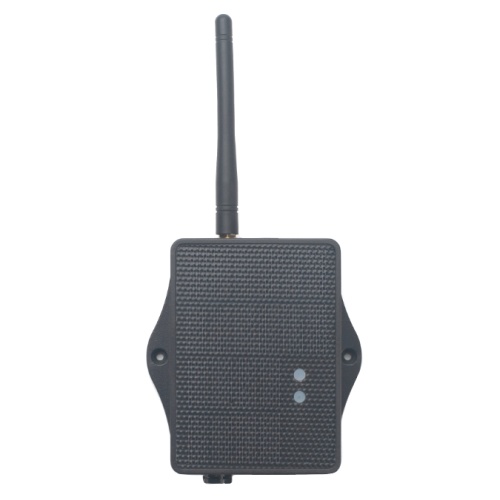

TS01-LS -- LoRaWAN Tilting Sensor

The Dragino TS01-LS is a LoRaWAN Tilting Sensor for Internet of Things solution. TS01-LS is an outdoor Tilting Sensor specially designed for detecting the angle of trees, buildings or large scale equipment.

TS01-LS measures pitch and roll angle and converts to LoRaWAN wireless data and sends to IoT platform via LoRaWAN network.

The LoRa wireless technology used in TS01-LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

TS01-LS supports BLE configure and wireless OTA update which make user easy to use.

TS01-LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use up to 5 years.

Each TS01-LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
•  Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Detect pitch and roll angle
• Support Angle Alarm
• Support Datalog feature
• Monitor Battery Level
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• Solar panel + 3000mAh Li-ion battery

Specifications:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Angle Spec:

• Measure Pitch and Roll
• Accuracy: 0.3°C

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz, Band 2 (LF): 410 ~ 528 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Documents:

• DataSheet, Document Base

• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• TS01-LS LoRaWAN Titling Sensor

Dimensions and Weight:

• Device Size: cm
• Device Weight: g
• Package Size / pcs : cm
• Weight / pcs : g

Part Number: TS01-LS-XX

XX: The default frequency band

• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU433: LoRaWAN EU433 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865:  LoRaWAN IN865 band
• CN470: LoRaWAN CN470 band

• Availability: 50 In Stock
• Model: TS01-LS
